Mastersound monoblock 300B
300B Parallel Single Ended Class A Mono Endverstärker
Power: 30 Watt
Tubes: 2 x 6SN7 - 2 x 300 B
Input: 1 line RCA + 1 line XLR
Input Imped: 1 kohm / sens. 1 volt
Output transformer: MastersounD
Automatic settable Bias
Load impedance: 4 – 8 Ohms
Bandwidth: 8hz / 80khz 0 db
Negative feedback: 0 dB
Dimensions: 46 x 41.5 x 27,5 cm.
Weight: 23 Kg

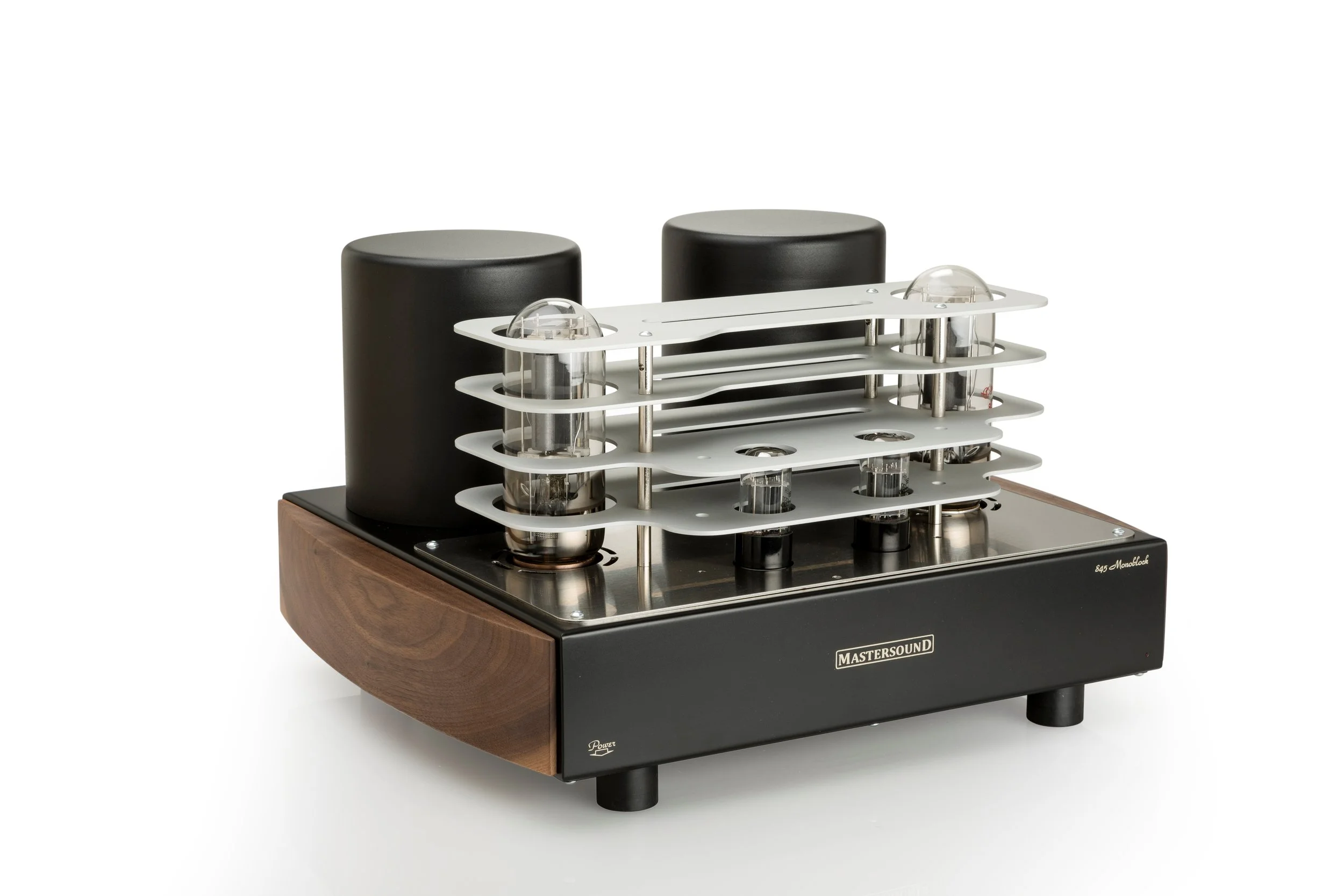

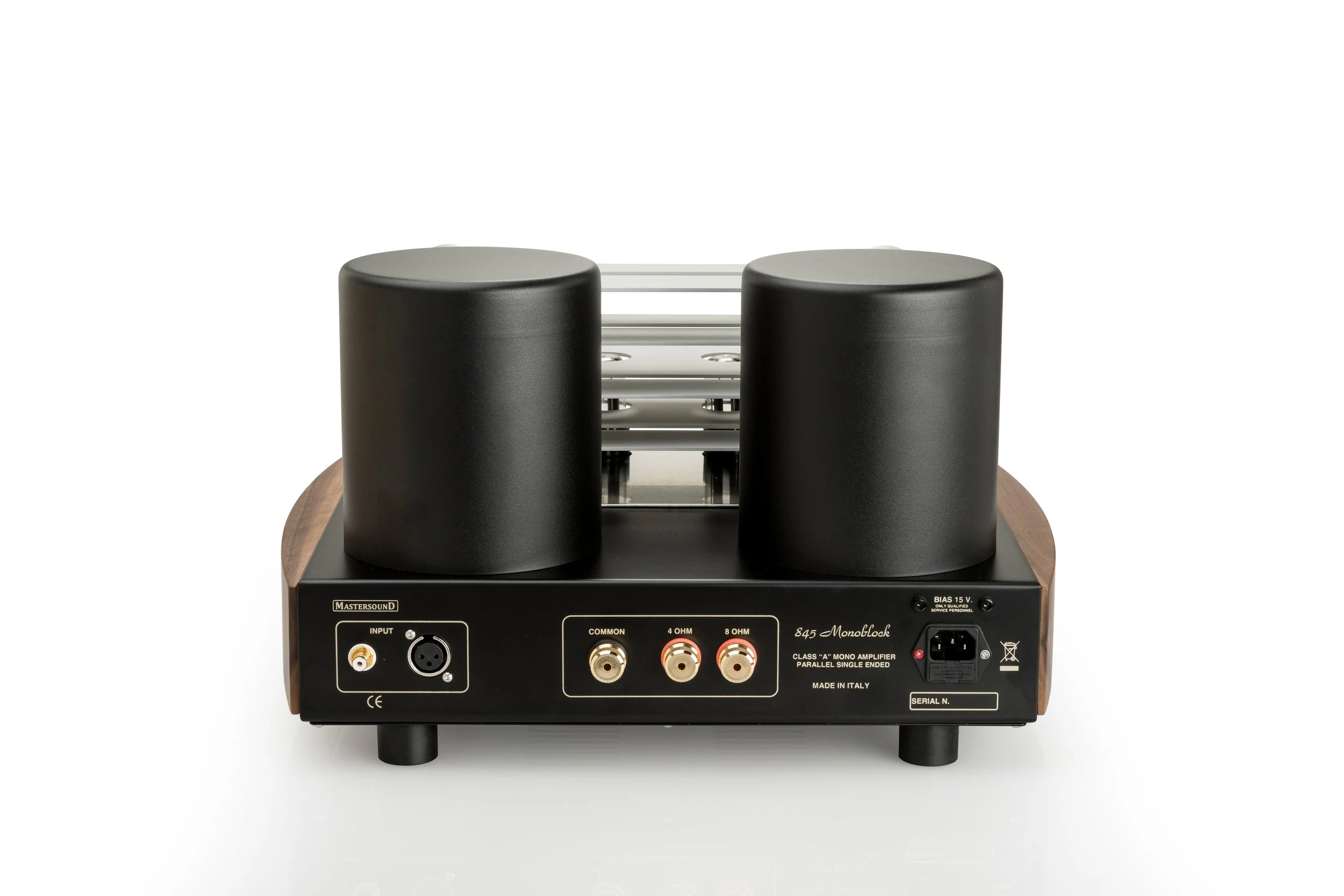

Mastersound Monoblock 845
845 Parallel Single Ended Class A Mono Endverstärker
Power: 50 Watt
Tubes: 2 x 845 - 2 x 6SN7 GT
Input: 1 line RCA + 1 line XLR
Output transformer: MastersounD
Automatic settable Bias
Load impedance: 4 – 8 Ohms
Bandwidth: 8hz / 80khz 0 db
Negative feedback: 0 dB
Dimensions: 46 x 41.5 x 27,5 cm
Weight : 30 Kg

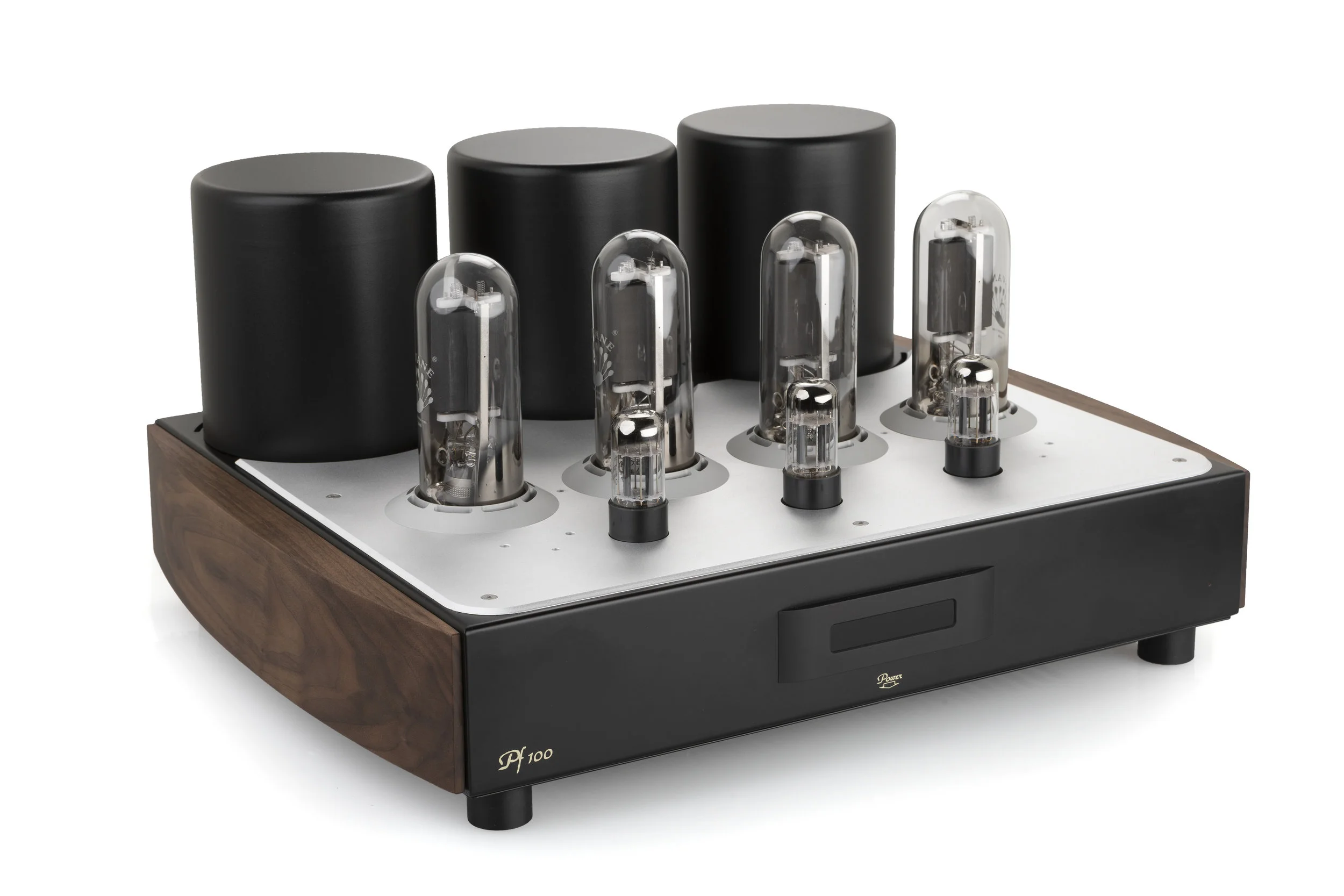

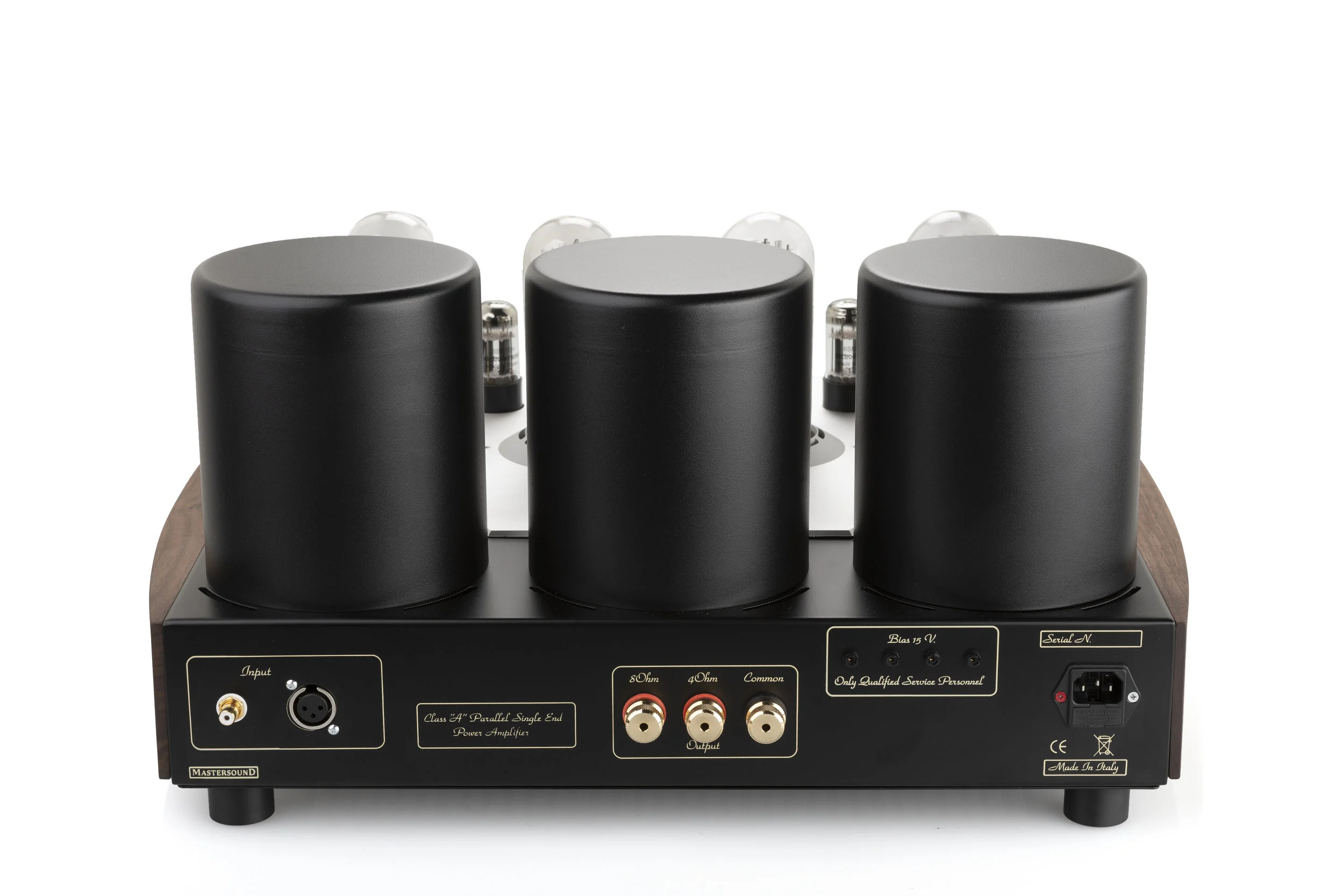

Mastersound PF100 Litz Edition
845 Parallel Single Ended Class A Mono Endverstärker
Power: 120 Watt
Tubes: 3 x 6SN7 - 4 x 845
Input: 1 line RCA - 1 line XLR
Output imped.: 1 kohm/ sens. 1 volt
Output transformer: MastersounD special in Litz
Load impedance: 4 – 8 Ohm
Automatic settable Bias
Bandwidth: 5hz > 100khz 0 db
Negative feedback: 0 dB
Dimensions: 56 x 47 x 29 cm.
Weight: 50 Kg
