Mastersound Box
EL34 Single Ended Class A Vollverstärker mit Power (Phono MM)
Power: 2 x 35 Watt
Tubes complement: 2 x ECC802 - 6 x EL34
Input: 3 line + Phono MM
Load imped.: 4-8 ohm
Bandwidth: 18 hz / 25khz 0 db
Output: 1 line
Output Trasformer: MastersounD
Automatic Bias
Supplied with remote control
Negative feedback: 0 db
Dimensions: 43,6 x 40,9 x 18,5 cm
Weight: 24 Kg

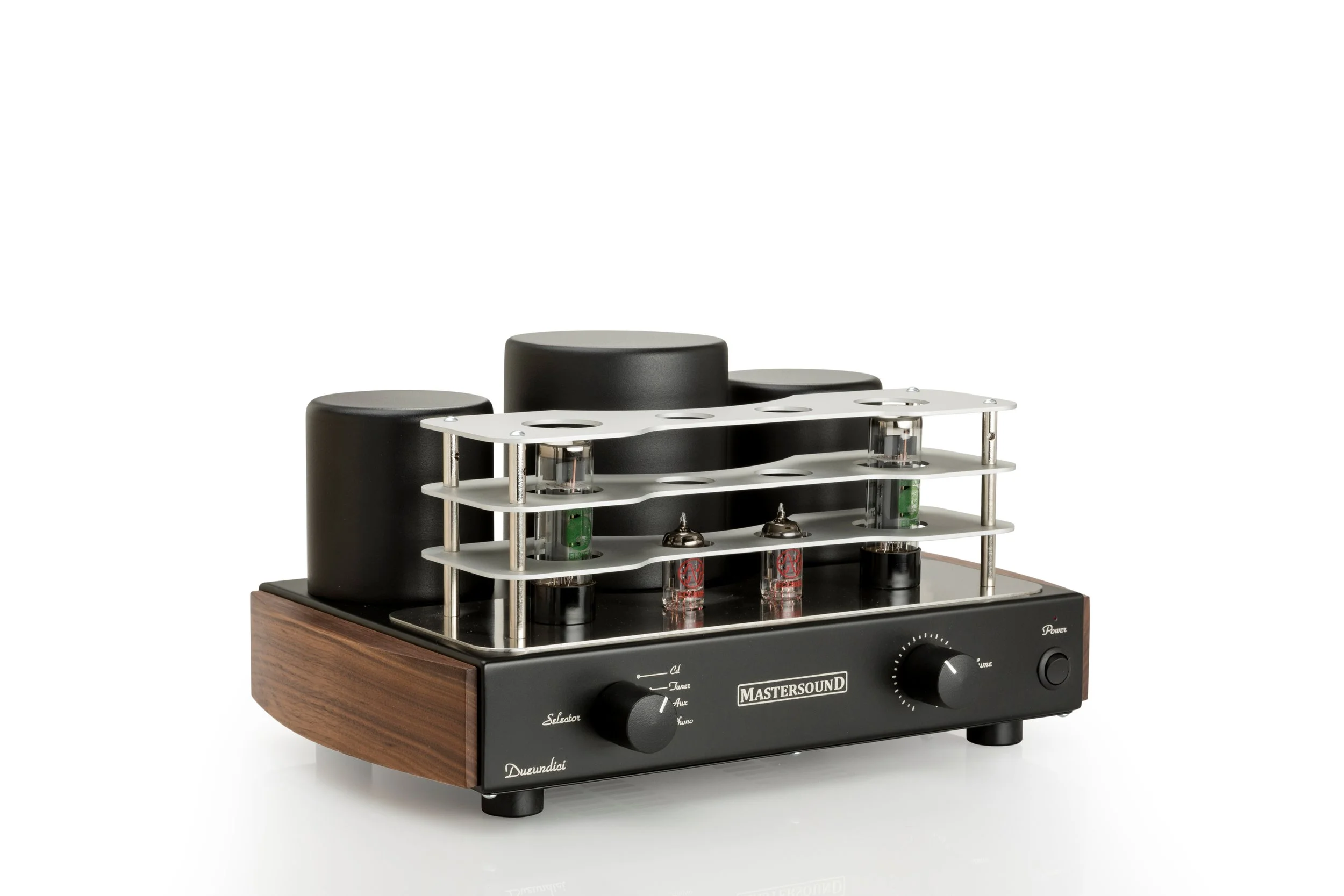

Mastersound Dueundici
EL34 Single Ended Class A Vollverstärker (Phono MM)
Power: 2 x 11 Watt
Tubes complement: 2 x ECC802 - 2 x EL34
Input: 3 line + Phono MM
Load imped.: 4-8 ohm
Bandwidth: 15hz / 30khz 0 db
Output Trasformer: MastersounD
Automatic Bias
Supplied with remote control
Negative feedback: 0 db
Dimensions: 41 x 29,5 x 21 cm
Weight: 15 Kg

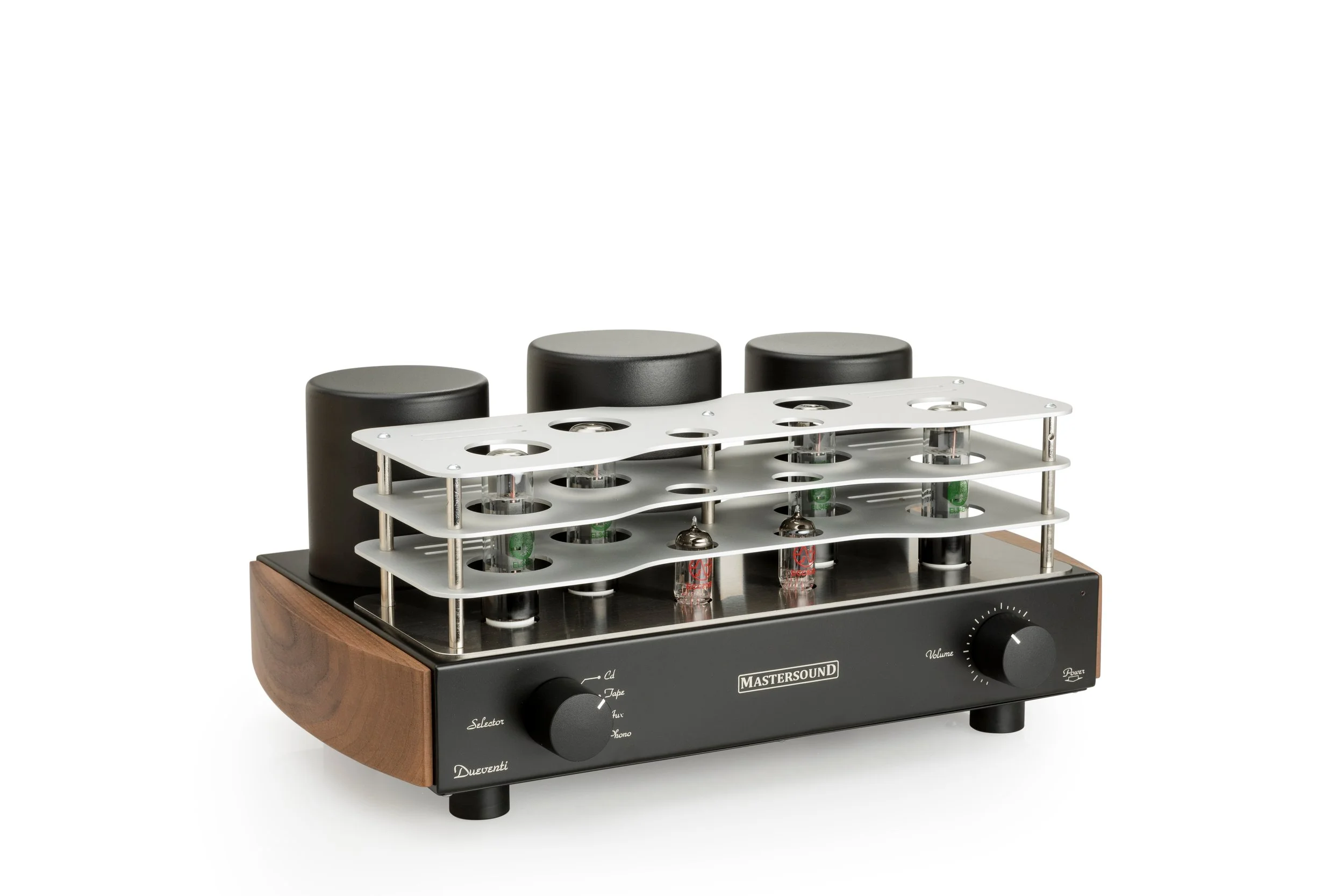

Mastersound Dueventi
EL34 Parallel Single Ended Class A Vollverstärker (Phono MM)
Power: 2 x 20 Watt in pentode configuration
Power: 2 x 10 Watt in triode configuration
Tubes: 2 x ECC802 - 4 x EL34
Input: 3 Line + Phono MM
Load Impedance: 4 – 8 Ohms
Automatic Bias
Bandwidth: 15hz / 30khz 0 db
Output Trasformer: MastersounD
Supplied with remote control
Negative Feedback: 0 dB
Dimensions: 49 x 33 x 23,5 cm.
Weight: 24 Kg

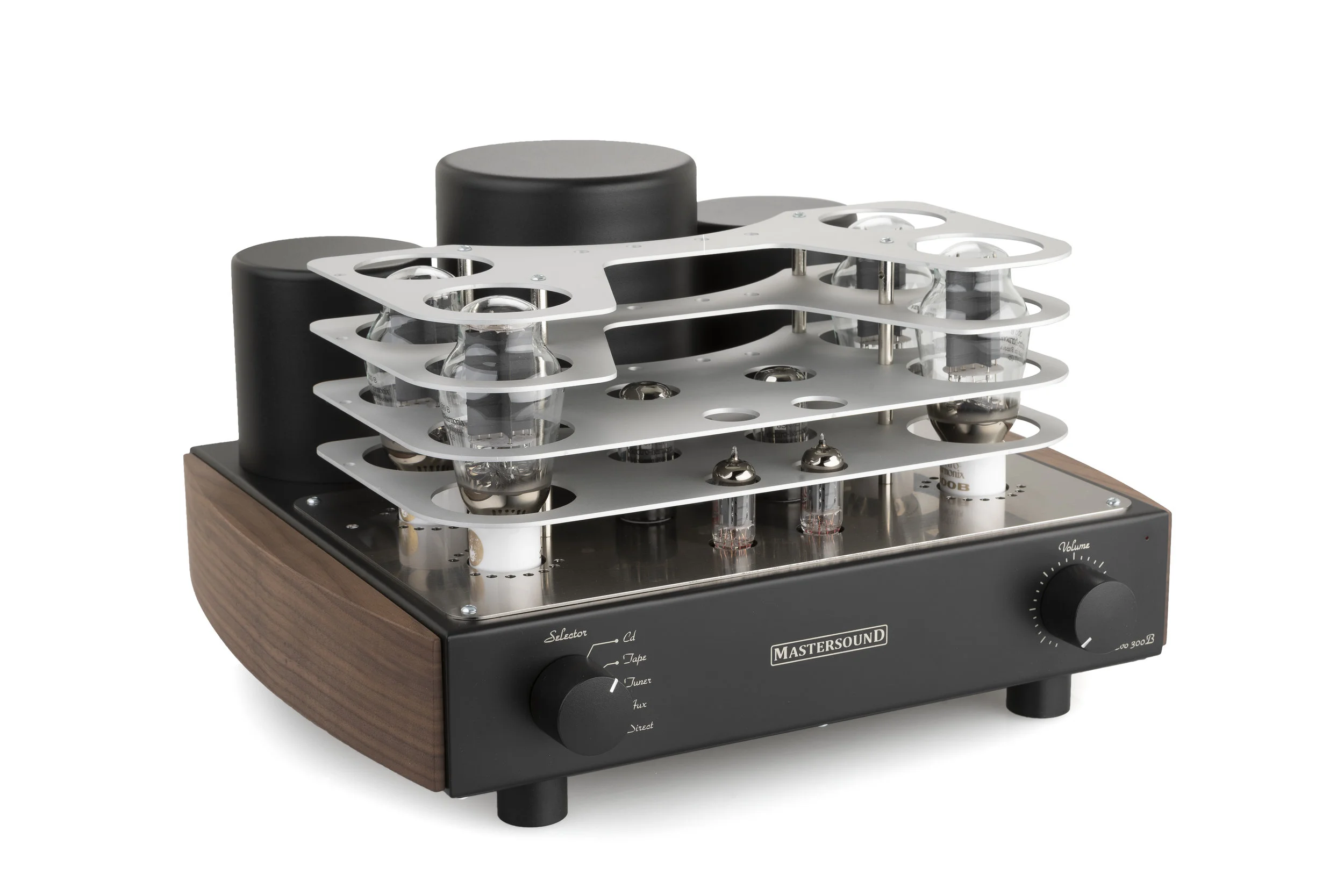

Mastersound Compact 300B
300B Single Ended Class A Vollverstärker
Power: 2 x 15 Watt
Tubes: 2 x 300 B - 2 x ECC802 - 2 x 6SN7
Inputs XLR: 1 x Line + 1 Direct
Inputs RCA: 3 x Line + 1 Direct
Bandwidth: 8hz / 40khz 0 db
Output transformer: MastersounD
Automatic settable Bias
Load impedance: 4 – 8 Ohm
Negative feedback: 0 dB
Supplied with remote control
Dimensions: 46 x 41.5 x 27,5 cm
Weight: 33 Kg

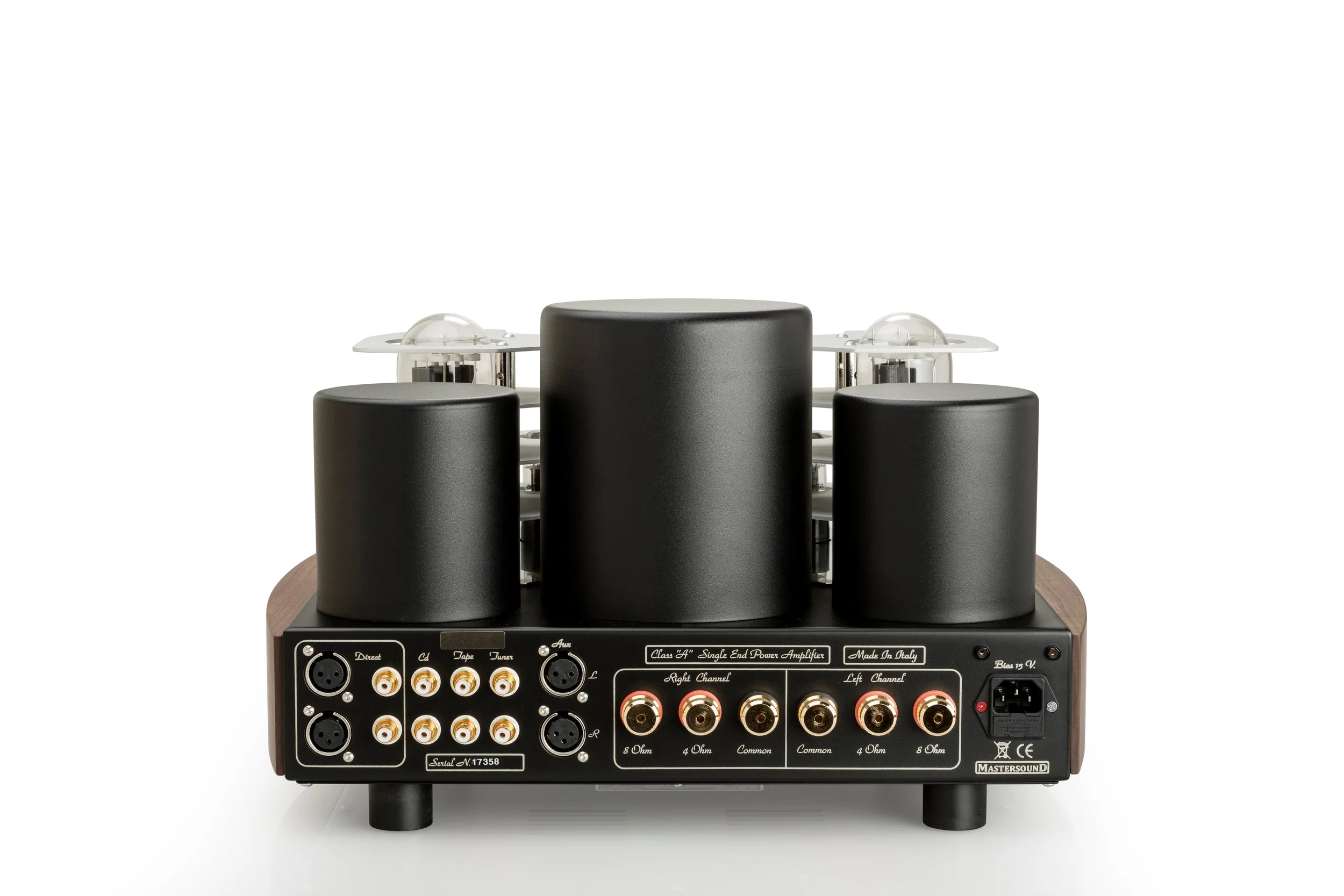

Mastersound Compact 845
845 Single Ended Class A Vollverstärker
Power: 2 x 30 Watt
Tubes: 2 x 845 - 2 x ECC802 - 2 x 6SN7
Inputs XLR: 1 Line + 1 Direct
Inputs RCA: 3 Line + 1 Direct
Bandwidth: 8hz / 40khz 0 db
Output transformer: MastersounD
Load impedance: 4 – 8 Ohm
Automatic settable Bias
Negative feedback: 0 dB
Supplied with remote control
Dimensions: 46 x 41,5 x 27,5 cm
Weight: 34 Kg
Mastersound Evolution 300B
300B Parallel Single Ended Class A Vollverstärker
Power: 2 x 24 Watt
Tubes: 4 x 300 B - 2 x ECC802 - 2 x 6SN7
Inputs XLR: 1 x Line + 1 Direct
Inputs RCA: 3 x Line + 1 Direct
Bandwidth: 8hz / 40 khz 0 db
Output transformer: MastersounD
Load impedance: 4 – 8 Ohm
Automatic settable Bias
Negative feedback: 0 dB
Supplied with remote control
Dimensions: 46 x 41,5 x 27,5 cm
Weight: 34 Kg

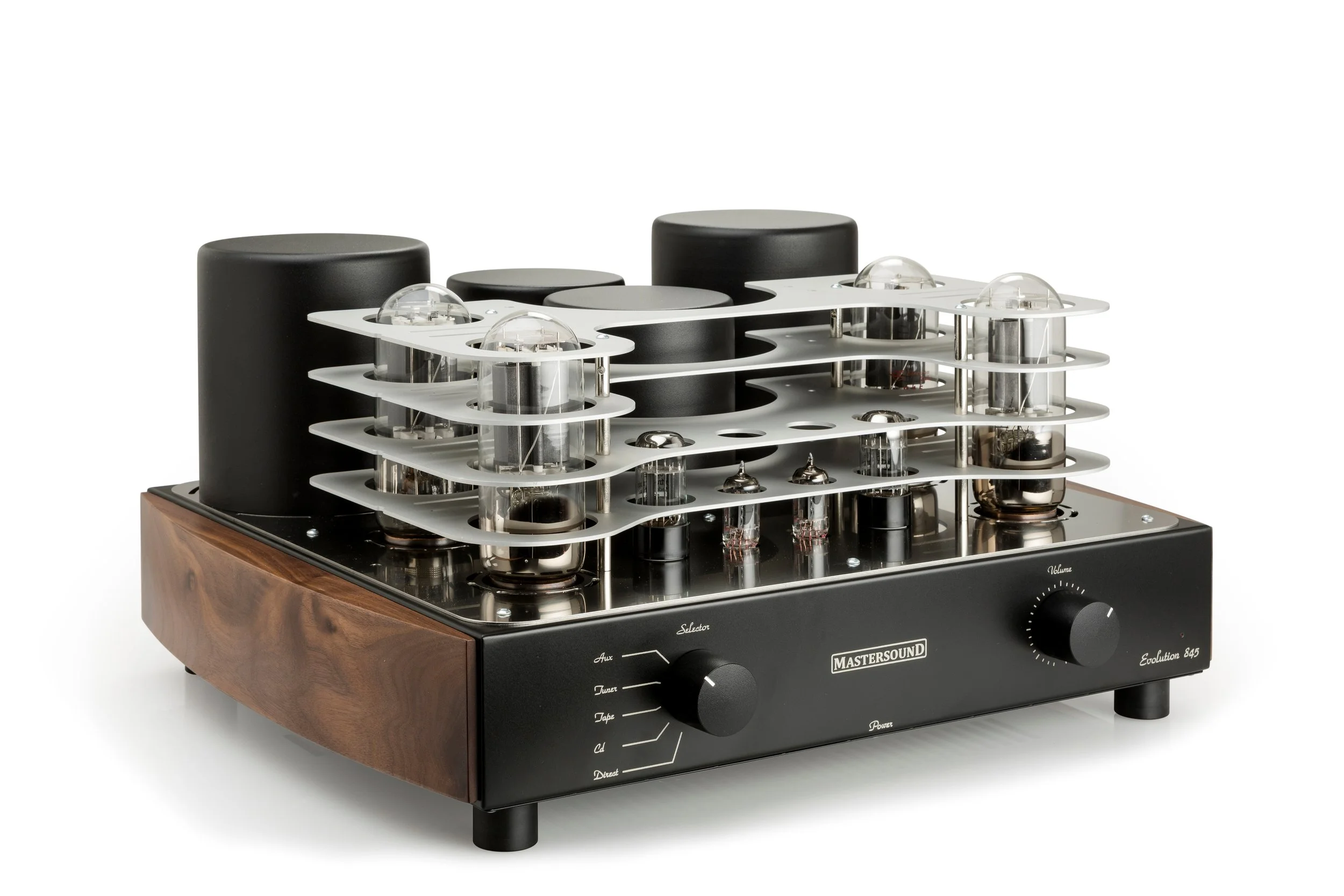

Mastersound Evolution 845
845 Parallel Single Ended Class A Vollverstärker
Power: 2 x 55 Watt
Tubes: 4 x 845 - 2 x ECC802 - 2 x 6SN7
Inputs XLR: 1 Line + 1 Direct
Inputs RCA: 3 Line + 1 Direct
Bandwidth: 8hz / 50 khz 0 db
Output transformer: MastersounD
Load impedance: 4 – 8 Ohm
Automatic settable Bias
Negative feedback: 0 dB
Supplied with remote control
Board with gold tracks
Dimensions: 56 x 49,5 x 28 cm
Weight: 53 Kg. ( 116,8 lbs )
